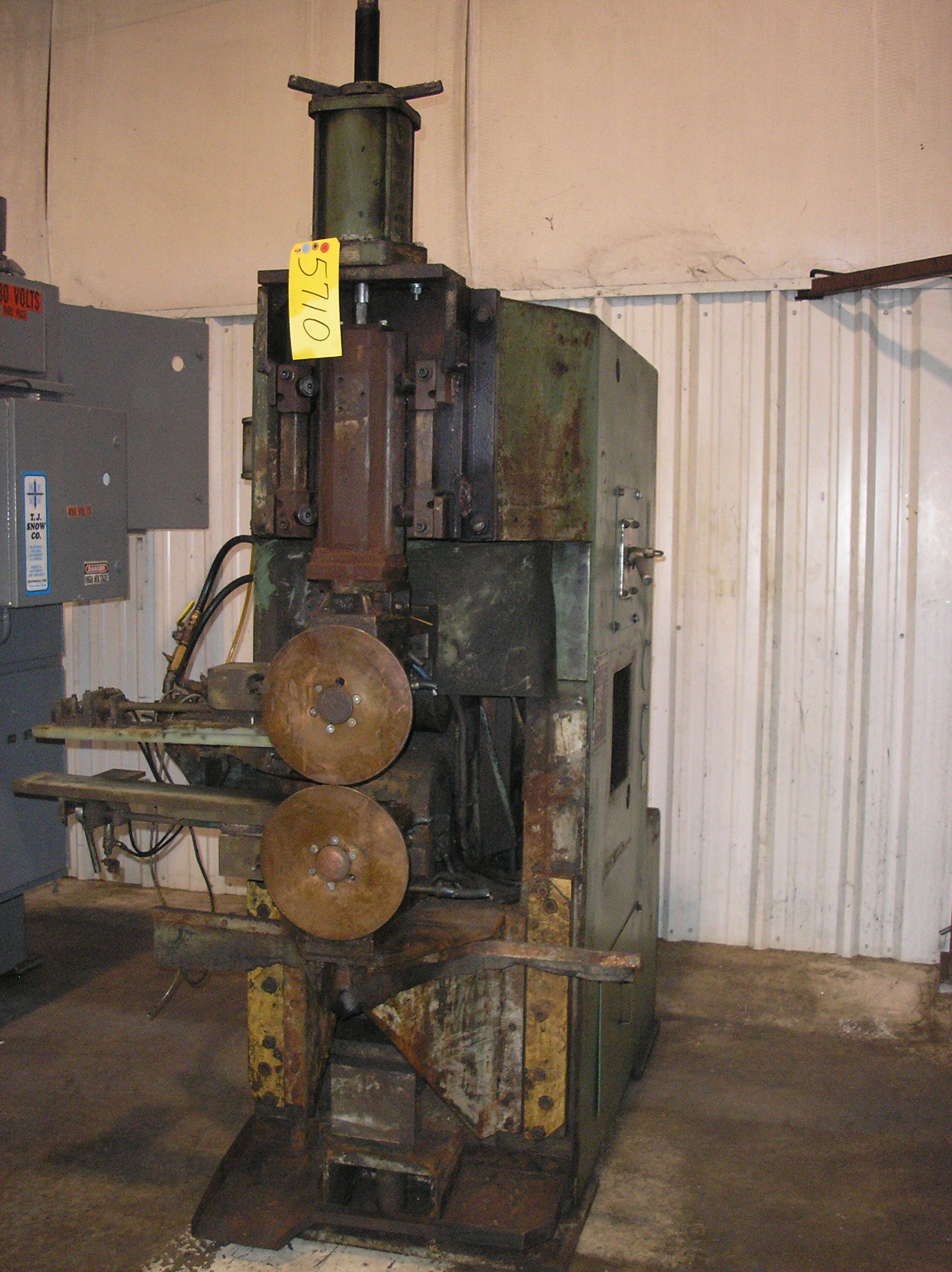

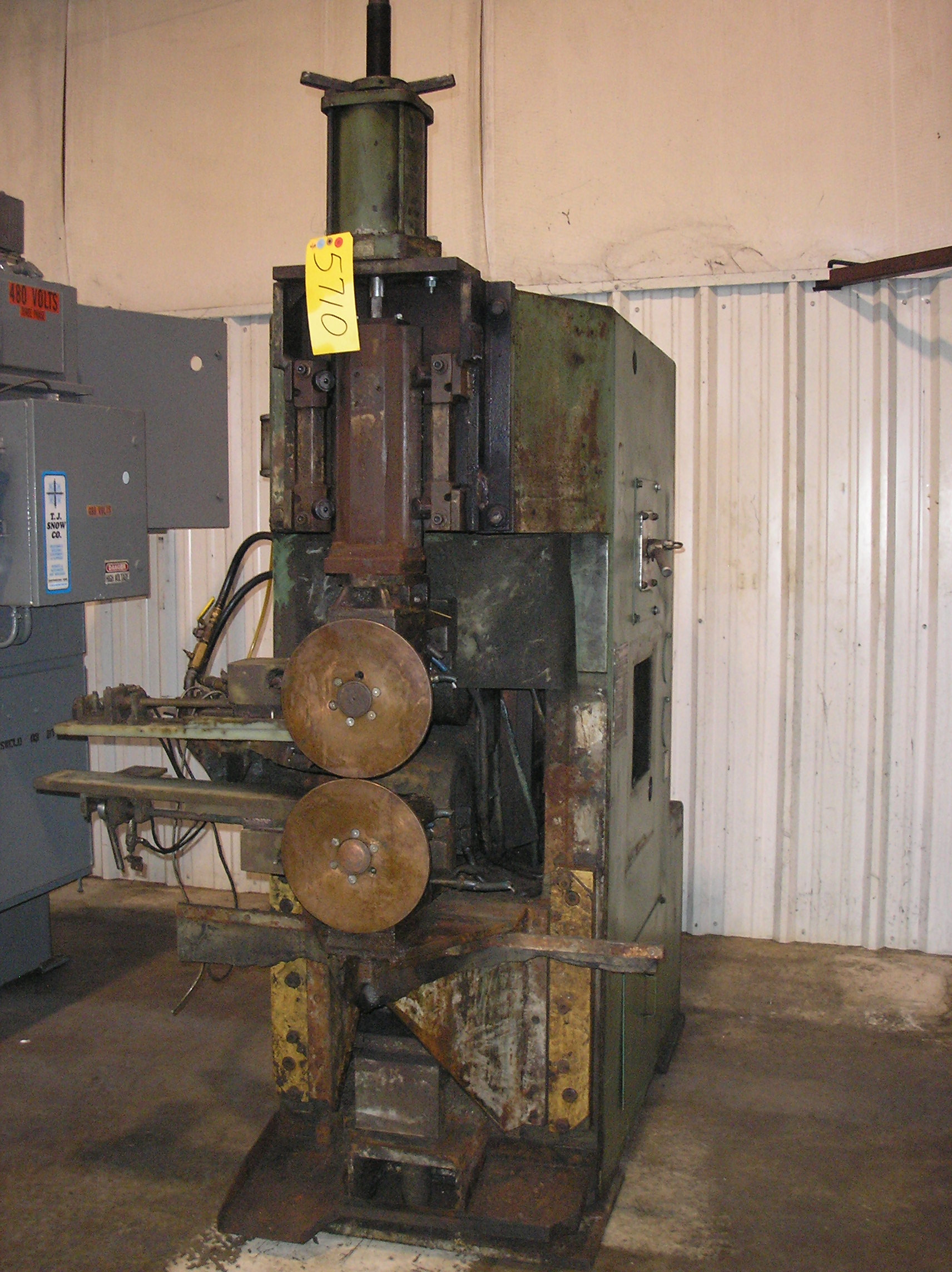

TAYLOR-WINFIELD Circumferential (Circular) Seam Welder

  • Machine Specifications

    Stock Number:

    5710
    Transformer:

    250 KVA
    Manufacturer:

    TAYLOR WINFIELD
    Mfg. Model Number

    MSE SEAM
    Voltage:

    440/460/480 Volts, Single Phase
    Throat Depth:

    18 in
    Secondary Volts:

    4.0 - 10.0
    Secondary Amps:

    26,000
    Serial Number:

    87424-B
    Air Type:

    Adjustable Stroke
    Cylinder Diameter:

    6 in
    Max Force:

    2260 lbf
    Upper Drive:

    None -- see note
    Lower Drive:

    None -- see note
    Additonal Details:

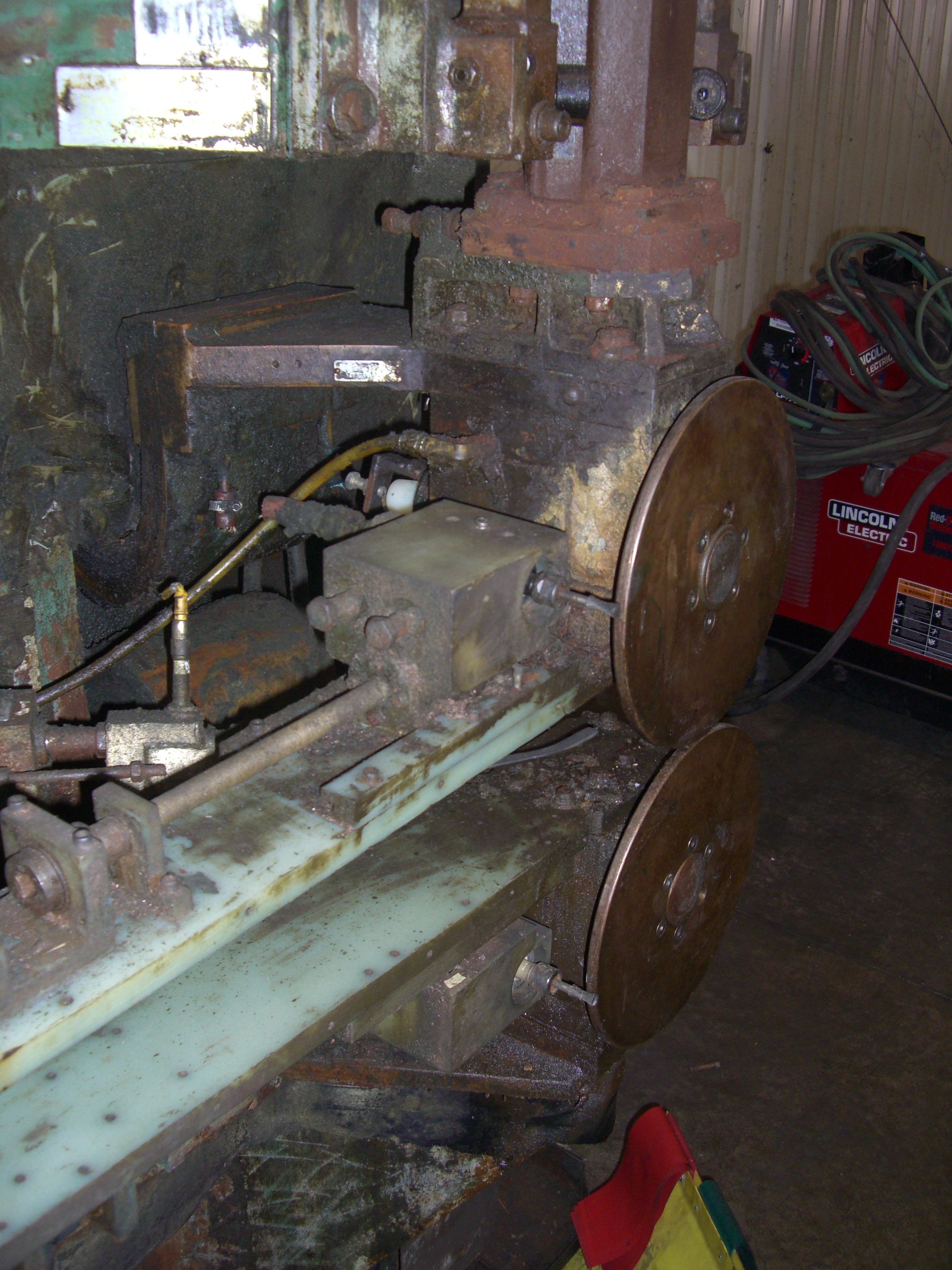

    18" Throat Depth, 6" Diameter Adjustable Stroke Air Cylinder. This is one of two matched T-W seam welders that came out of a roll forming line. Thus, there are no drive mechanisms currently installed. Frame dimensions are 36" wide, 60" deep and 99" tall. Allow extra width with a control cabinet installed. There is a wheel welding face dressing mechanism installed top and bottom.
