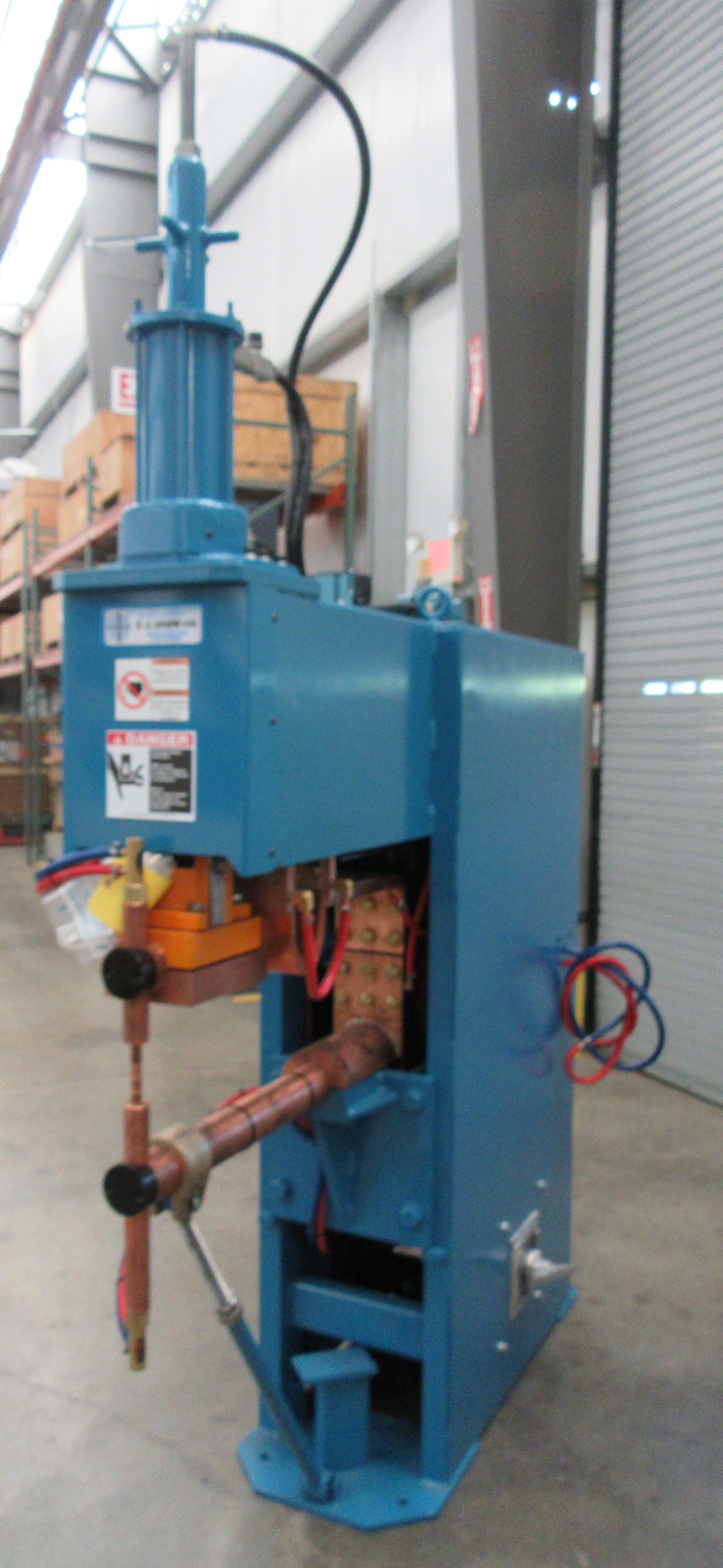

Remanufactured FEDERAL Press-type Spot Welder

  • Machine Specifications

    Stock Number:

    6572

    Transformer:

    300 KVA

    Manufacturer:

    Federal

    Mfg. Model Number

    PA-2-30

    Voltage:

    440/460/480 Volts, Single Phase

    Throat Depth:

    30 in

    Secondary Volts:

    6.1-16.0

    Secondary Amps:

    60,000

    Serial Number:

    37092

    Air Type:

    Adjustable/Retractable

    Cylinder Diameter:

    5 in

    Max Force:

    1570 lbf

    Holder Diameter:

    1.25 in

    Service:

    600 Amp, 440 Volt, Single Phase

    Tap Switch:

    8-Step, Hi/Lo

    Arm Dia Lower:

    3" in

    Arm Dia Upper:

    3" in

    Additonal Details:

    This is a heavy-duty deep-throat press-type spot welder with a big 300 KVA, 440V transformer. It's got plenty of "horsepower" for almost any spot welding application and it should be able to spot weld aluminum to commercial specs. (We will weld samples when the machine is ready.) This welder is Remanufactured and will include a new or refurbished control and a full one year warranty. Call or email for a price today!
