50 KVA T-W Model ENB-18-50
18" throat depth as a Projection Welder
 24" throat depth as a Spot Welder

T-W heavy duty 50 KVA Press Type Projection Welder, 440V, Model ENE-18-50, with T-slotted platens.  Original control removed and our complete strip and ReMan procedure is recommended.  This would include a new or like-new control with programmable functions and a full one year warranty.

50 KVA FEDERAL Model PA-1-12 heavy duty press-type projection welder, 220V.  This machine includes T-slotted tooling platens top and bottom. The original control was removed and a complete strip and ReMan is recommended.

PEER Model P25 Projection welder, 50 KVA, 440V, versatile deep throat design.  T-slotted platens top and bottom. Needs to go through our ReMan procedure.  Also needs a new or reconditioned welder control.

50 KVA, 220V ACME Model PT1P-12-50 Projection Welder with T-slotted platens.  Original control removed.  Recommend a complete ReMan and a new control.

Heavy duty T-W Model ENE-18-50, 50 KVA, 440V.  T-slotted platens top and bottom. Spot welding arms could be added. Original control removed and a complete strip and ReMan procedure is recommended.  This would include the installation of a new or reconditioned control with programmable functions.

Heavy duty T-W Press-type Projection Welder with T-slotted Platens.  Spot welding arms are optional.  Original control removed. Our complete strip and ReMan procedure is recommended, which includes a new control and a full one-year warranty.

Heavy duty ACME 50 KVA Press-type Projection Welder with T-slotted platens, 440V, single phase.  Spot welding arms optional. Our complete strip and ReMan procedure is recommended.  This would include a new or like-new  control with programmable functions.

Taylor-Winfield is one of the best welder brands and this machine is well worth the effort to strip and truly remanufacture it to new machine specs.  This would include the installation of the welder control of your choice.

Currently Non-Stock
Brand new heavy duty HERON Projection & Spot Welder built in China and shipped to us by the container load. Benefit from our volume purchases!  We order these machines without controls so that we can install the American-made welder control of your choice and ship them FAST.

Heavy duty! We are very familiar with the FEDERAL brand because we sold them new for many years.  We are eager to show you how good this machine will look and work after a complete Strip & ReMan.  Ask us for a quote!

Janda Projection Welder, Model P12-100.
No control currently installed.
Ask us to quote the machine Stripped and Truly ReManufactured with the control of your choice

This is another heavy duty FEDERAL brand welder. Ask us to quote it ReManufactured with a new control.  Also, we can rewind the transformer from 220V to 440V if required.

Heavy Duty combination Projection and Spot Welder with Precision's unique low friction ball bearing ram, which produces the fast follow-up action so important for resistance welding. This machine needs to be stripped and ReManufactured to like-new condition. It also needs a new control of your choice.

Precision press-type welders feature a unique ball-bearing ram for low friction and fast follow-up.

good candidate for or Refurb or ReMan process.

This projection welder has a small foot print and features a RoMan 100 KVA transformer.  We've sold a dozen of more of this design and it's ideal for nut and stud welding. It needs to be stripped and Remanufactured.

Heavy duty RWC 100 KVA projection welder
Dual voltage (220/440 Volts)
12" throat to the centerline of the platens.

Quick delivery available!

This machine is in great condition because it saw little use. It features an air-over-oil force delivery system and an ENTRON EN1000 welder control with programmable functions.

Smith-Cobun is the brand name used by the owners of Tipaloy for the machines they build.

Believe it or not, a beautiful welder is underneath all the dirt!  Make us prove it by asking us to quote this machine in like-new condition after our complete Strip and ReMan procedure. We would then install the control of your choice.

Unique deep-throat projection welder

48" throat depth

Flat platens on which to mount tooling

ENTRON EN1000 control with programmable functions

Complete Remanufacture in process!

Complete Remanufacture in process!

Original control removed prior to a complete Strip & ReMan procedure.

Three phase SCIAKY 150 KVA, 440 Volt, 12" throat.  Original control removed. Good candidate for a complete Strip & ReMan procedure, including a new control.

The SCIAKY Heavy Duty 3-Phase Type Projection Welder is ideal for projection welding nuts & studs. It comes equipped with a three phase frequency converter, heavy duty stacked core machine-type water cooled welding transformer.

FRL combo (new air filter, regulator, lubricator and gauge)
Standard paint colors are safety blue, vista green, or white (choose one)

Heavy duty ACME Press-type Projection Welder with an 8" standard dual acting air cylinder and a 12" throat depth.

Platens have T-slots for mounting tooling.

No control installed.

Good candidate for our Remanufacturing process, which involves stripping the machine completely apart and making it like new.  This process usually involves the installation of a new control.

Versatile Peer 150 KVA combination Projection & Spot Welder.  We can send this machine through our shop and make it look and work like brand new.  To make the machine even more attractive, you get to choose your favorite brand and model of welder control. Save big bucks with a T.J. Snow remanufactured resistance welder!

Machine has spot welding arms bolted to flat platens.  (Not T-slotted)  Original control removed. Machine should be Remanufactured.  Voltage can be changed from 220V to 440V.

BRAND NEW MACHINE!  We will install the control of your choice and ship quickly. 8" Standard Dual Acting Air Cylinder, 18" Throat Depth, RoMan 150 KVA transformer

Welders like this are hard to find on the used market. It is a heavy duty 150 KVA, 440V Teledyne PEER Press-type Projection Welder with T-slot platens.  The machine includes both a Series/Parallel selector switch for the transformer and an 8-step tap switch for a total of 16 steps of heat regulation.

Completely Remanufactured, customer's choice of weld control, and carries a one-year warranty.

One of our machines that we obtained from a customer.

Funky secondary configuration shown in photos will be changed to standard.  Existing control will probably be replaced.

This Heavy Duty Press Type Projection Welder has been completely Remanufactured for "fast ship" inventory.

Customer's choice of a new or refurbished microprocessor, programmable type weld control.

Please call or email for a quote!

Brand new heavy duty HERON Projection & Spot Welder built in China and shipped to us by the container load. Benefit from our volume purchases!  We order these machines without controls so that we can install the American-made welder control of your choice and ship them FAST.

MFDC (Medium Frequency DC) TECNA press-type projection and spot welder designed to insure high quality welding. The versatile TE700 welding control features Constant Current, Constant Power, Constant Voltage and Constant Energy adjustment in Dynamic Mode.

If you only own one resistance welder, this would be the one to have! We usually have one or more of this model in stock. Call or email for a quotation.

Non-Stock at this time but can be ordered.

Formerly used as a Lab Welder at Reynolds Aluminum and T. J. Snow Company..

This welder's ram has a built-in diaphragm to insure fast follow-up.

Sciaky single phase projection and spot welder.  Could be sold Refurbished or Remanufactured.

18" throat depth as a projection welder.
Spot welding arms are optional.
Heavy duty lower knee

T-W Model ENB-12-250.  Machine needs to be Remanufactured.
6" adjustable air cylinder, 12" throat depth as a projection welder.
Spot welding arms are optional.
Lead photo shows a sister machine after a complete Strip & ReMan procedure.
This is an RWMA Size 1 Frame with a 250 KVA transformer.
This machine would be ideal for a resistance brazing application or another high duty cycle application.

250 KVA Peer Model P-200
8" standard dual acting cylinder.
36" throat depth to the centerline of the platens.
Spot welding arms optional
Attention wire fabricators ... this is the machine for you!

250 KVA T-W with a 5.5" diameter Adjustable Stroke Air Cylinder
12" Projection Throat Depth.
Original control has been removed.
Complete Strip & ReMan procedure is recommended.

Heavy duty 250 KVA
9" diameter adjustable & retractable air cylinder.
30" throat depth as a Projection Welder.
Ideal machine for a wire fabricator!

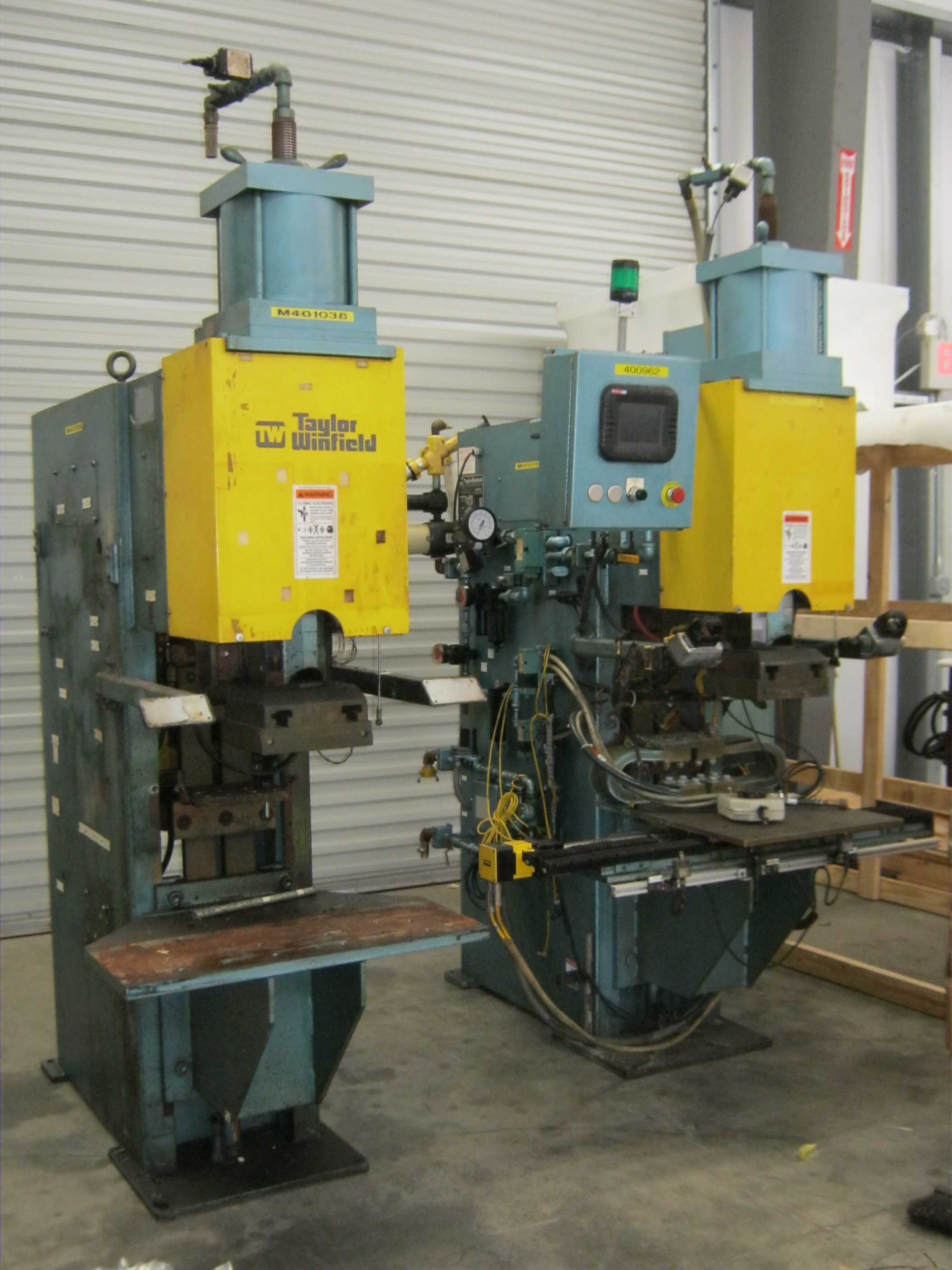

We have two of these late-model machines.  Both were originally equipped with programmable lower tooling fixtures. We removed this mechanism from one of the machine and left the other one intact.

Note: The existing secondary configuration will need some work in order to make this a "standard" machine.

We have two of these late-model 250 KVA machines.  Both were originally equipped with programmable lower tooling fixtures. We removed this mechanism from one of the machine and left the other one intact.

Note: The existing secondary configuration will need some work in order to make this a "standard" machine.

FAST SHIP!
300 KVA, 440V heavy duty TAYLOR-WINFIELD Projection Welder
12" throat depth with T-slot platens
12" adjustable & retractable air cylinder with surge tank
Complete Strip & ReMan is currently in process ... choose your favorite brand control
Stay tuned to see the machine look and work like new!

heavy duty welder, 300 KVA

Large, extra heavy duty Press Type Projection Welder, currently equipped with removable bar die type holders/electrodes.  These large bar dies are for welding multiple wire cross-sections at a time.

500 KVA Mid Frequency Direct Current Projection Welder

3-phase MFDC

Former MLS lab welder

Perfect machine for welding parts with large ring projections

We've welded lots of samples on this machine and it works great!

However, we're not sure how long the BF ENTRON control will be supported, so the machine is priced accordingly.

Buy a bargain!

Immediate shipment available

We need to confirm the KVA rating of this welder.

Model No. DR-10000, 10 kJoule Power Supply, 480 Volts, Three Phase

306mm  / 401mm Throat Depth/Gap

Weld Force is 15,000 Newtons = (3,372 lbs.) by pneumatically operated welding cylinder; pressure setting by proportional pressure valve. Fast follow-up mechanism and LVDT- Linear Variable Differential Transducer is included.

10.5 – 14.0 Secondary Voltage

80,000 Max. Short Circuit Secondary Current

Discharge is electronically controlled discharge by high current
pulse transformers

Force Monitoring:	Automatic; force is captured by load cell

Dual palm buttons mounted to a T-stand

Heavy Duty C-frame, designed as stable welded construction

Dimensions (mm):	W x H x L = 1285 x 2370 x 1300

Customer Utility Services Required:
Electrical: 480 Volts / 60 HZ / Three Phase,
                 adjustable from 50-100 amperes.
Air: 		 Clean and dry at 80 PSIG (minimum).
Water:	 Clean and non-conductive at 35 PSIG (10 GPM)

20 kJoule Power Supply,
480 Volts, Three Phase
Heron control
Heavy Duty C-Frame
Throat Depth/Gap:	360mm  / 400mm
Weld Force:	34,000 Newtons = (7,643 lbs.) by
                         pneumatically operated welding
                         cylinder; pressure setting by
                         proportional pressure valve.
                         Fast follow-up mechanism and
                         LVDT- Linear Variable Differential
                         Transducer

Secondary Voltage:	17.0- 21.0 Volts

Max. Short Circuit
Secondary Current:	130,000

Discharge:	Electronically controlled discharge by
                        high current pulse transformers

Force Monitoring:    Automatic;
                                force is captured by load cell

Initiation:  Dual palm buttons mounted to a T-stand

Dimensions (mm):	W x H x L = 1400 x 2650 x 1600

4.5 kJoule, 480 Volts, Single Phase Power Supply

Heavy Duty C-Frame

Throat Depth/Gap:  360mm/400mm (14.17” / 15.74”)

Weld Force:	10,000 Newtons = (2,248 lbs.) b

Secondary Voltage:	10.0 – 11.4 Volts

Max. Short Circuit Secondary Current:	41,100 amperes

Discharge:  Electronically controlled discharge
                   by high current pulse transformers

Force Monitoring:  Automatic; force is captured by load cell

Initiation:  Shrouded foot switch with cord

Dimensions (mm):  W x H x L = 1238 x 1800 x 810

Non-Stock, but available for order.

Model No.	             DR-45000, 45 kJoule Power Supply,

Throat Depth/Gap:    306mm  / 401mm

Weld Force:	              ???? Newtons = (???? lbs.) by
                                      pneumatically operated welding
                                      cylinder; pressure setting by
                                      proportional pressure valve. Fast
                                      follow-up mechanism and LVDT-
                                      Linear Variable Differential
                                      Transducer is included.

Secondary Voltage:    27 - 30 Volts

Max. Short Circuit
Secondary Current:   190,000

Discharge:                  Electronically controlled discharge
                                    by high current pulse transformers

Force Monitoring:       Automatic; force is captured by load cell

Initiation:		      Dual palm buttons mounted to a T-stand

Frame: 	                      Heavy Duty C-frame, designed as stable
                                      welded construction

Dimensions (mm):   W x H x L = 1402 x 2610 x 1643

Customer Utility Services Required:
Electrical:   480 Volts / 60 HZ / Three Phase
                     rated at 200 amperes.
Air: 	             Clean and dry at 80 PSIG (minimum).
Water:	     Clean and non-conductive at 35 PSIG (10 GPM)

Power Supply:    6 kJoule, 480 Volts, Single Phase

Frame:                Heavy Duty C-frame, designed as
                            stable welded construction
                            Throat Depth/ Gap: 360mm  / 400mm (14.17” / 15.74”)

Weld Force:        10,000 Newtons = (2,248 lbs.) by pneumatically
                            operated welding cylinder; pressure setting by
                            proportional pressure valve.

Secondary Voltage:	  10.0 – 12.0 Volts

Max. Short Circuit
Secondary Current:	  60,000 amperes

Discharge:	Electronically controlled discharge
                        by high current pulse transformers

Force Monitoring:	Automatic; force is captured by
                                load cell

Initiation:	Shrouded foot switch with cord

Dimensions (mm):	W x H x L = 1238 x 1800 x 810

One (1) in current TJS Inventory.

Available Specifications:
- Heavy duty frame with machined mounting surface
- 85 and 120 KVA AC Fixture Style Transformer
- 220, 440, and 575 Volt / Single Phase / 60 Hz.
- 100 and 170 KVA MFDC / 3 Phase Transformer
- 18" / 24" and 24" / 30" Available Throat depth
- Upper and Lower "T" Slotted Projection Platens
- 3.375" dia. Upper and Lower Arms
- 1.25" dia. Electrode Holders
- Foot Switch and/or Dual Opti-Touch Initiation
- Visi-Flow Indicators for each circuit
- Digital Water Flow Switch
- Customer's choice of Weld Control

Call for availability from our Fast Ship Inventory.

Additional Options Available:
- Special Tooling Fixtures
- Automatic Weld Nut/Stud Feeders
- Recirculating Water Chiller
