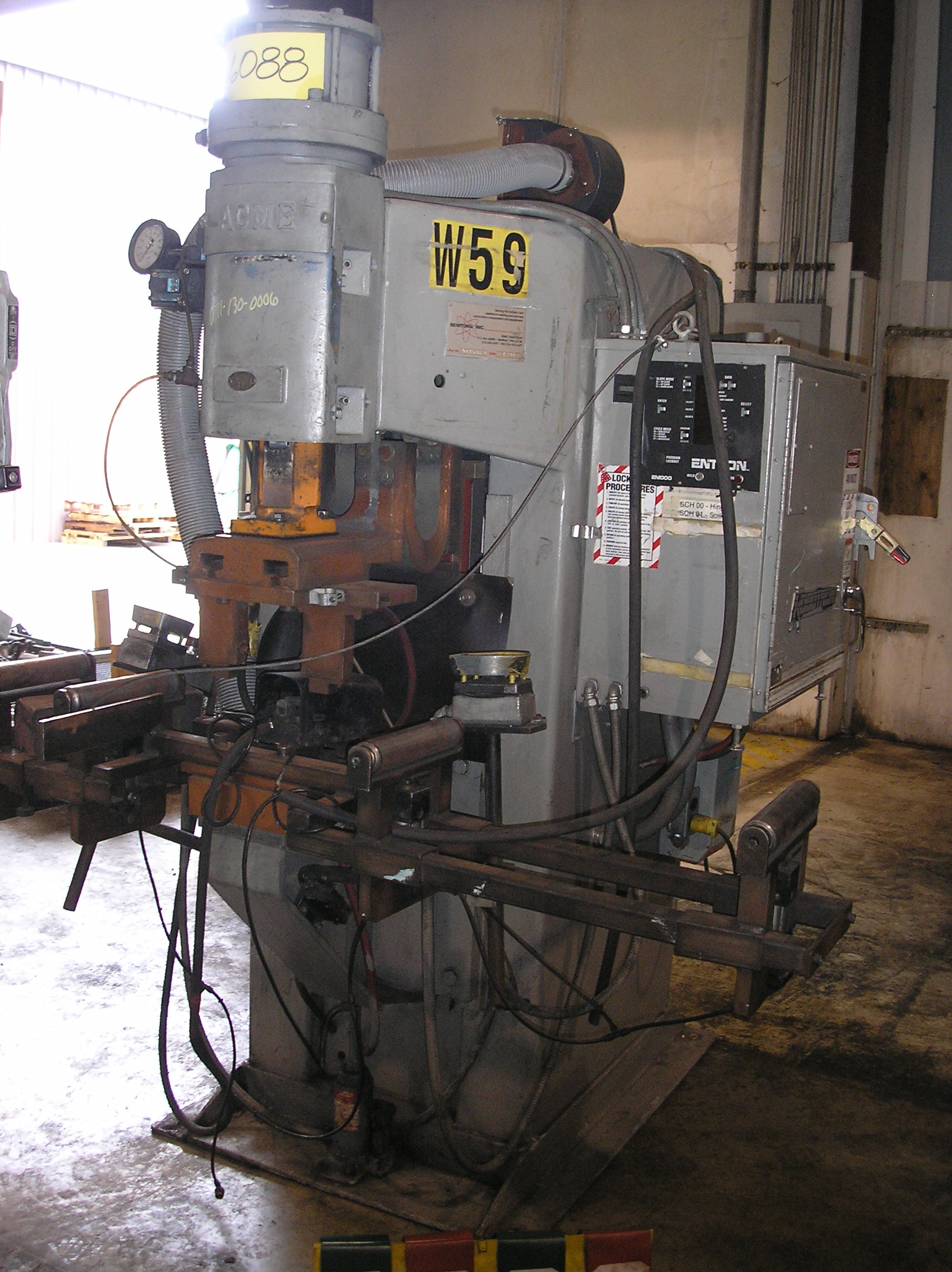

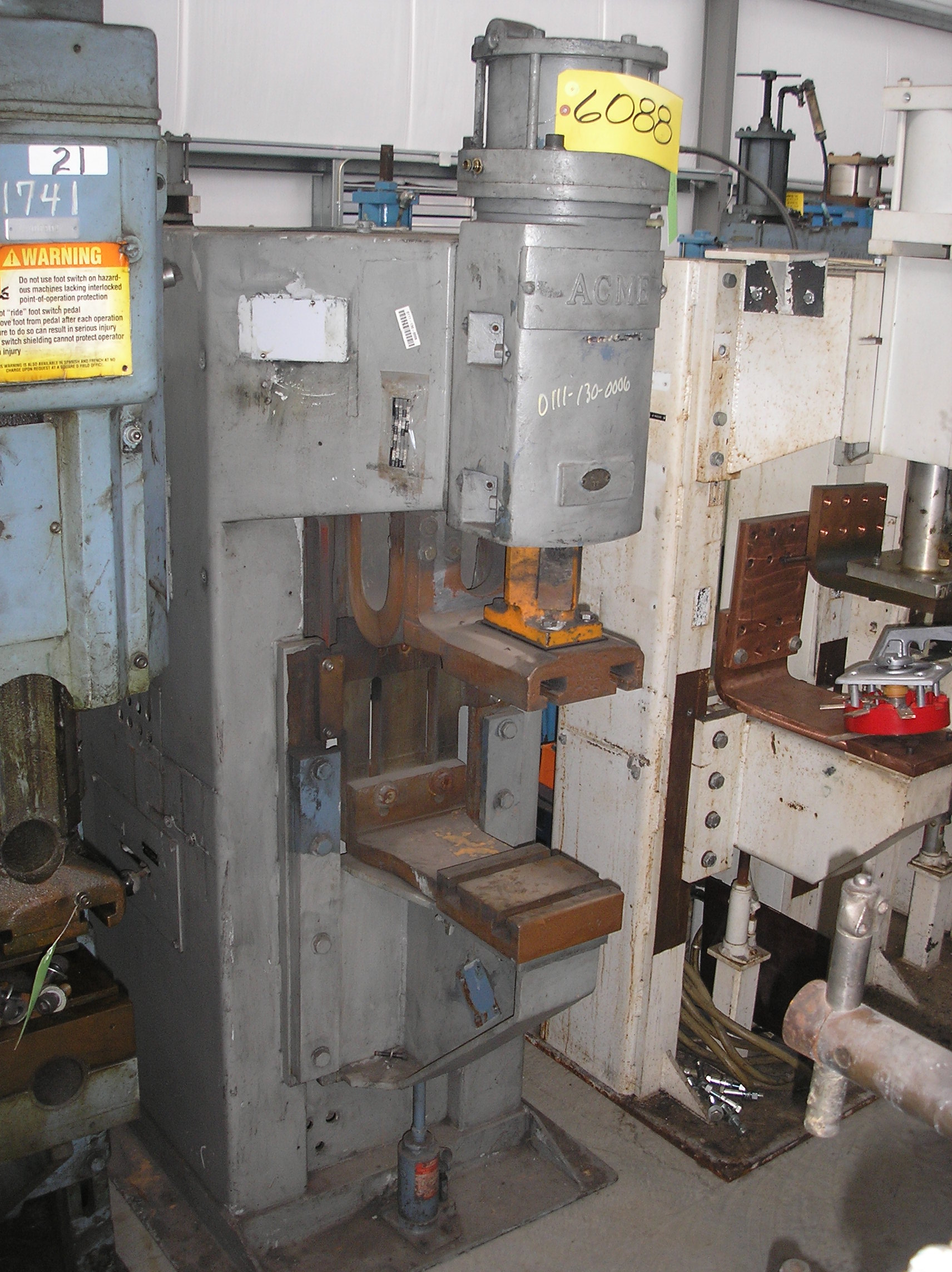

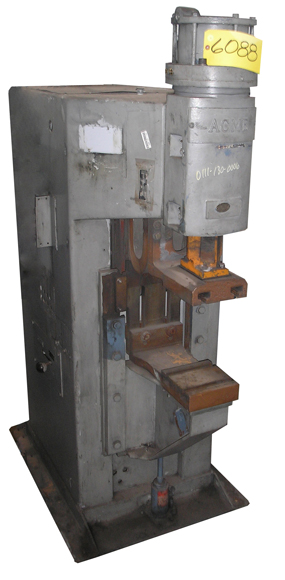

ACME Press-type Projection Welder

  • Machine Specifications

    Stock Number:

    6088
    Transformer:

    150 KVA
    Manufacturer:

    ACME
    Voltage:

    440/460/480 Volts, Single Phase
    Throat Depth:

    12 in
    Secondary Volts:

    5.7 - 11.5
    Serial Number:

    2178
    Air Type:

    Standard Dual Acting
    Cylinder Diameter:

    8 in
    Max Force:

    4020 lbf
    Platen Upper:

    8 x 8 F/B in
    Platen Lower:

    8 x 8 L/R in
    Tap Switch:

    Hi/Low
    Additonal Details:

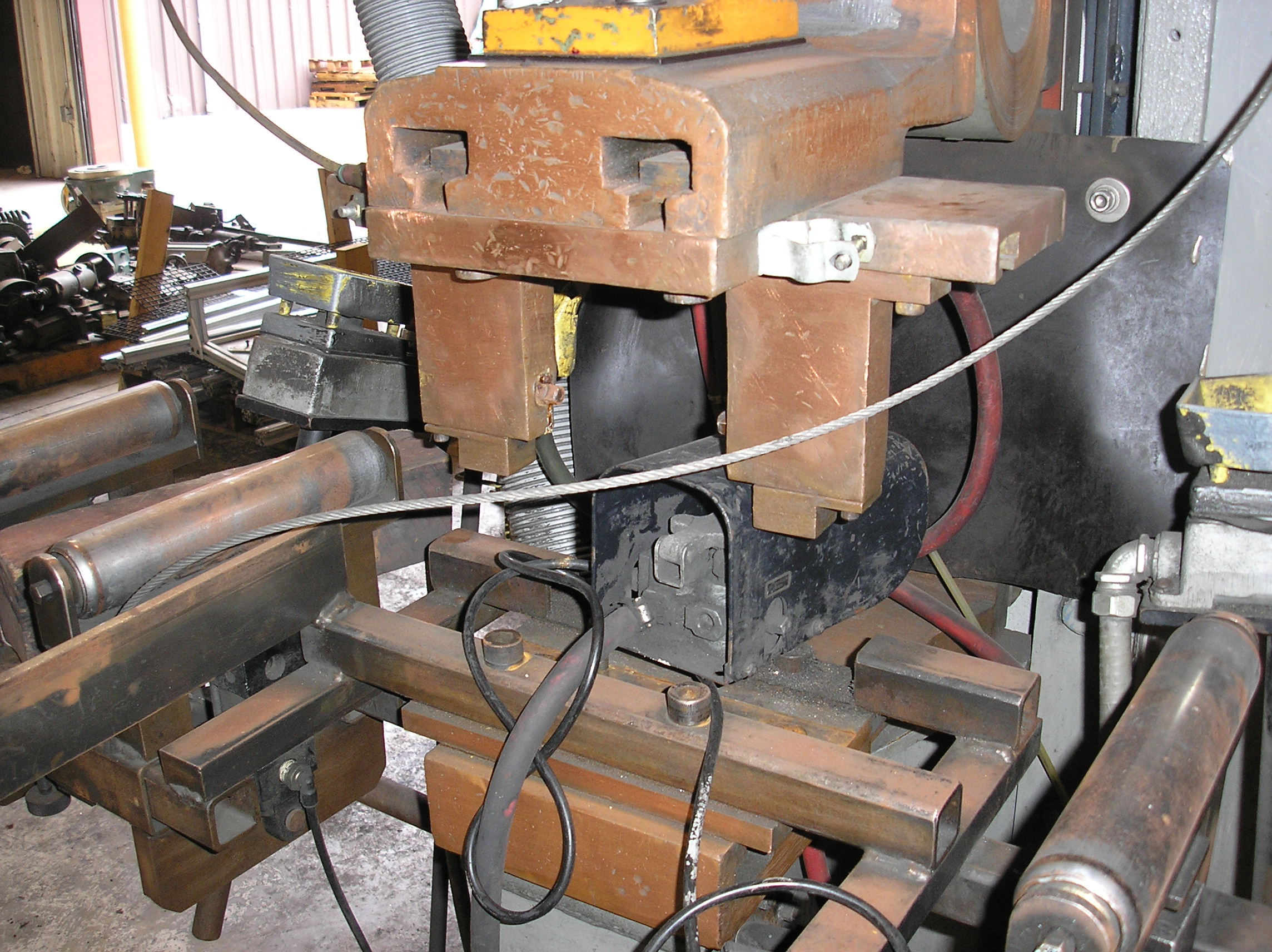

    Heavy duty ACME Press-type Projection Welder with an 8" standard dual acting air cylinder and a 12" throat depth. Platens have T-slots for mounting tooling. No control installed. Good candidate for our Remanufacturing process, which involves stripping the machine completely apart and making it like new. This process usually involves the installation of a new control.
