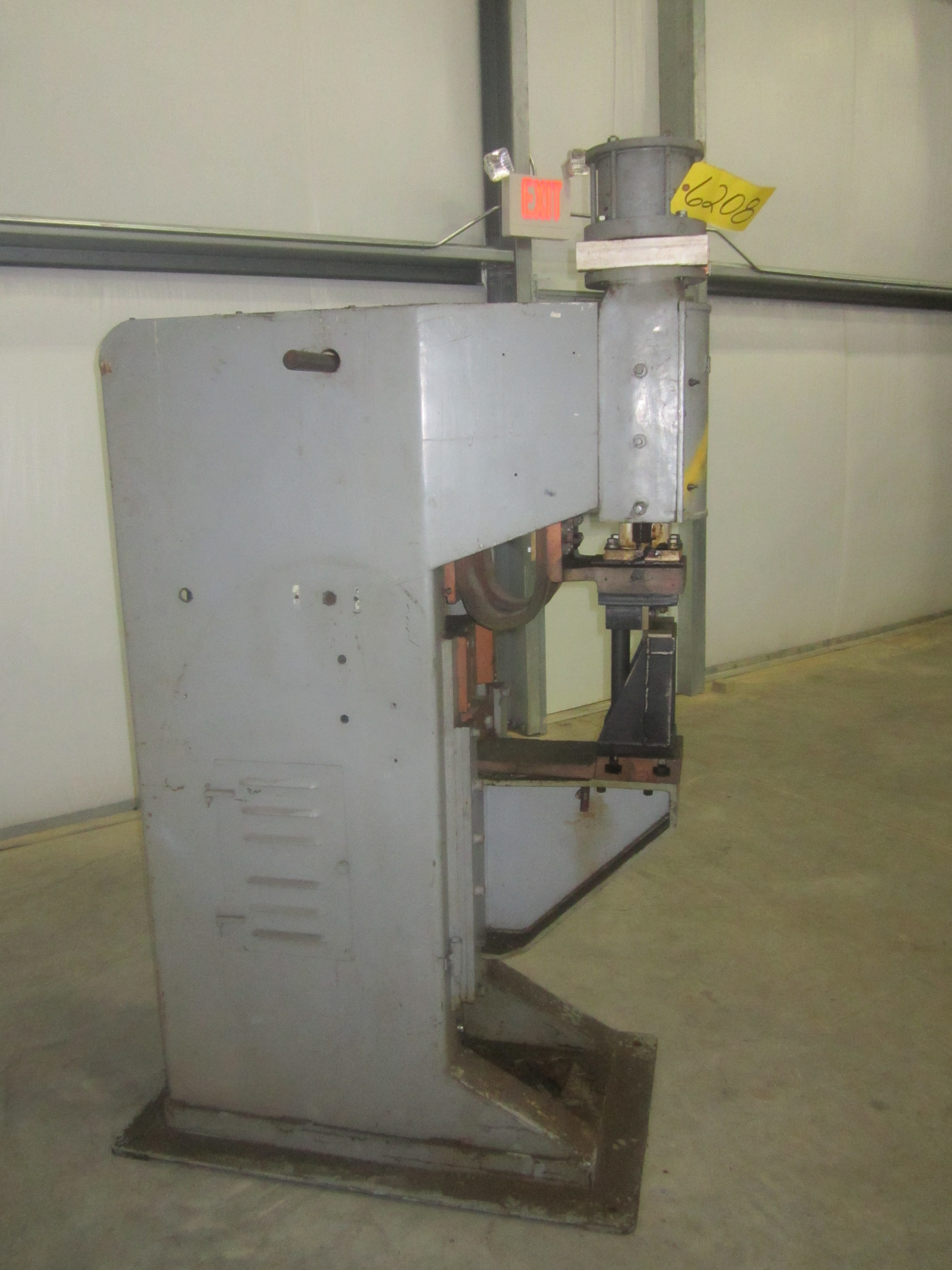

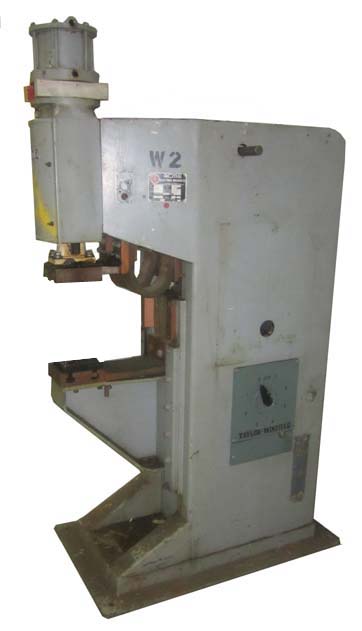

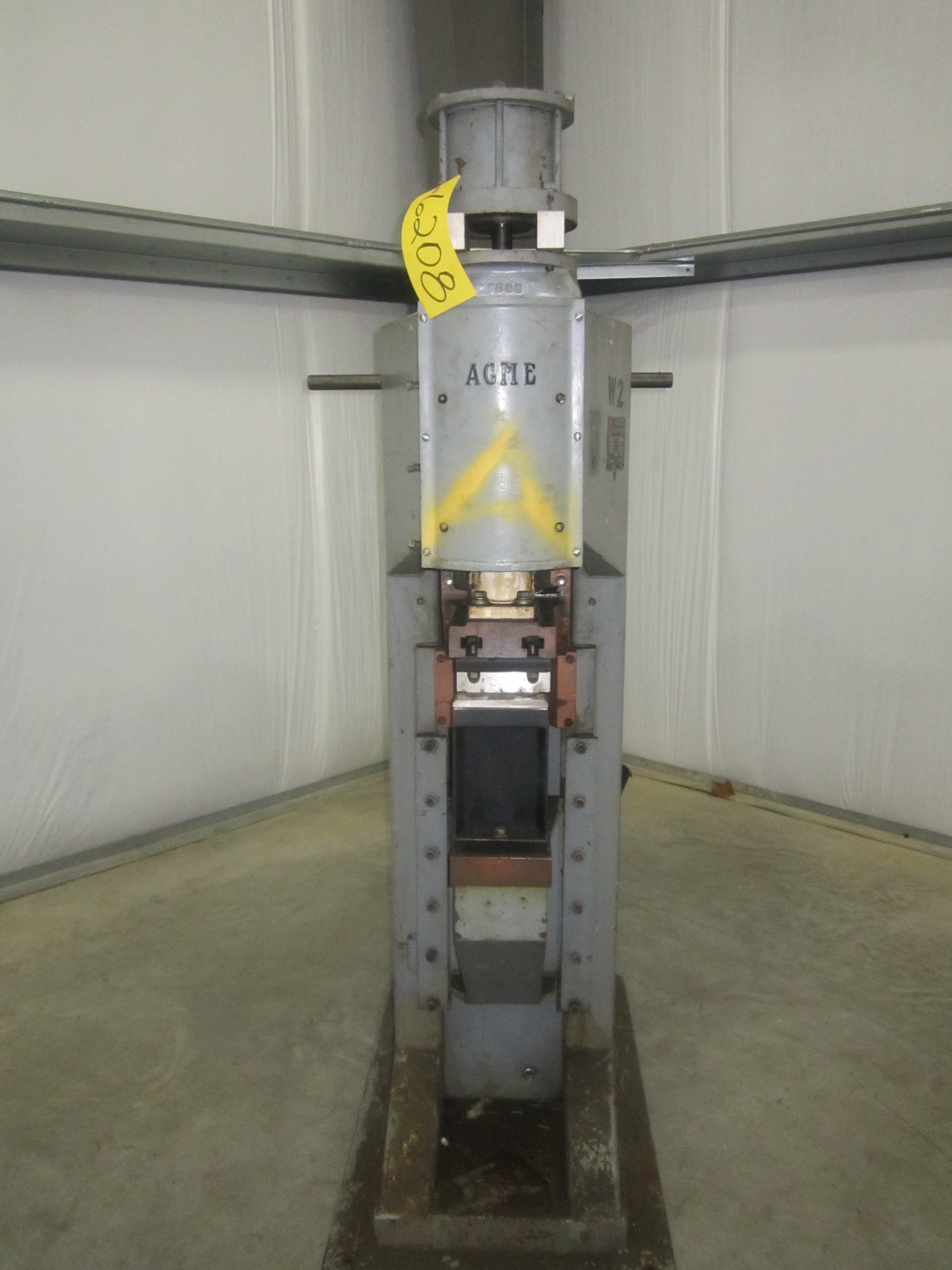

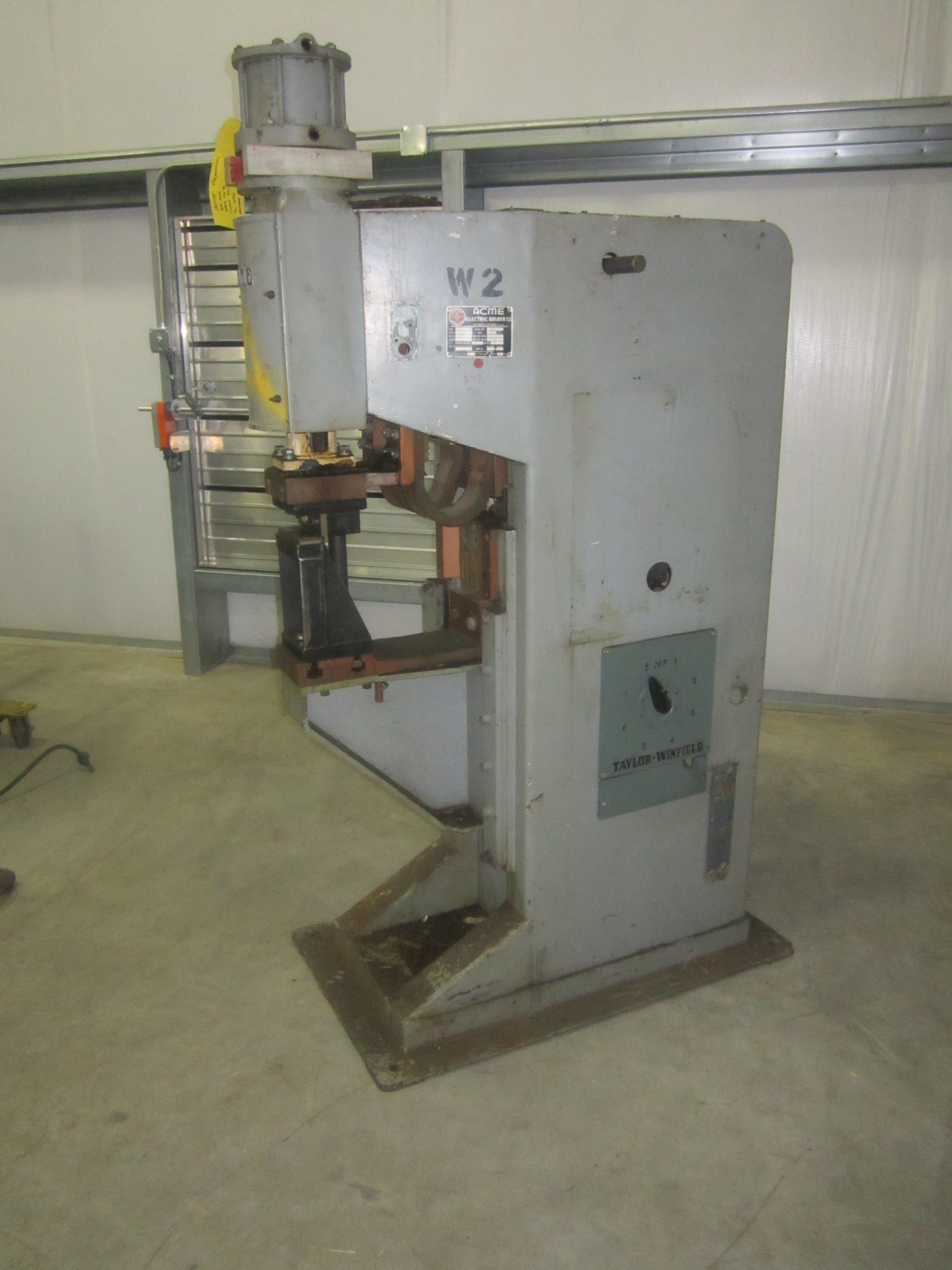

ACME Press-type Projection Welder

  • Machine Specifications

    Stock Number:

    6208

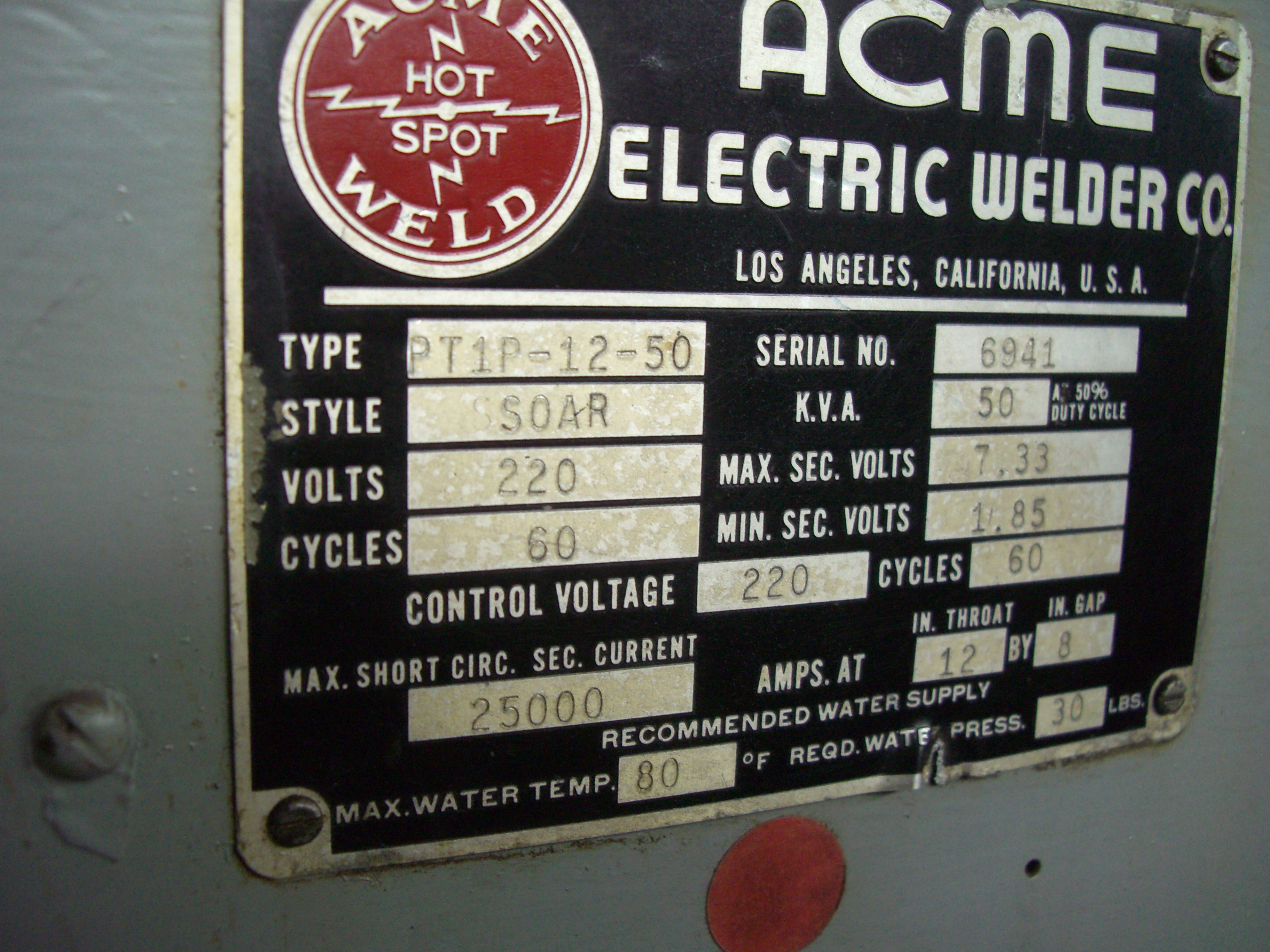

    Transformer:

    50 KVA
    Manufacturer:

    ACME
    Mfg. Model Number

    PT1P-12-50
    Voltage:

    220/230/240 Volts, Single Phase
    Throat Depth:

    12 in
    Secondary Volts:

    1.85 - 7.33
    Secondary Amps:

    25,000
    Serial Number:

    6941
    Air Type:

    Standard Dual Acting
    Cylinder Diameter:

    6 in
    Max Force:

    2260 lbf
    Platen Upper:

    6.5 X 6.5 FB in
    Platen Lower:

    6.5 X 6.5 LR in
    TSlot Spacing:

    4 in
    Additonal Details:

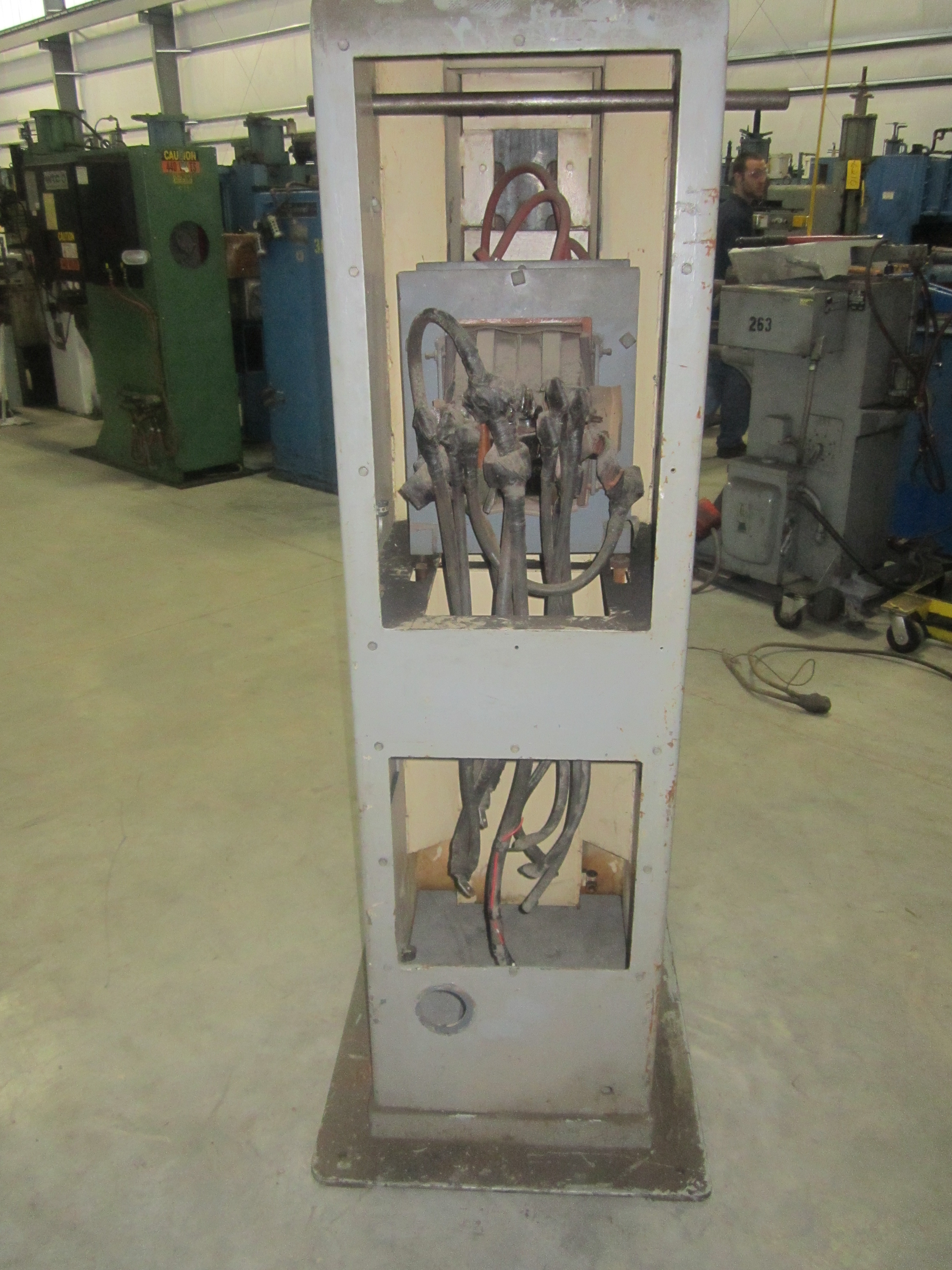

    50 KVA, 220V ACME Model PT1P-12-50 Projection Welder with T-slotted platens. Original control removed. Recommend a complete ReMan and a new control.
