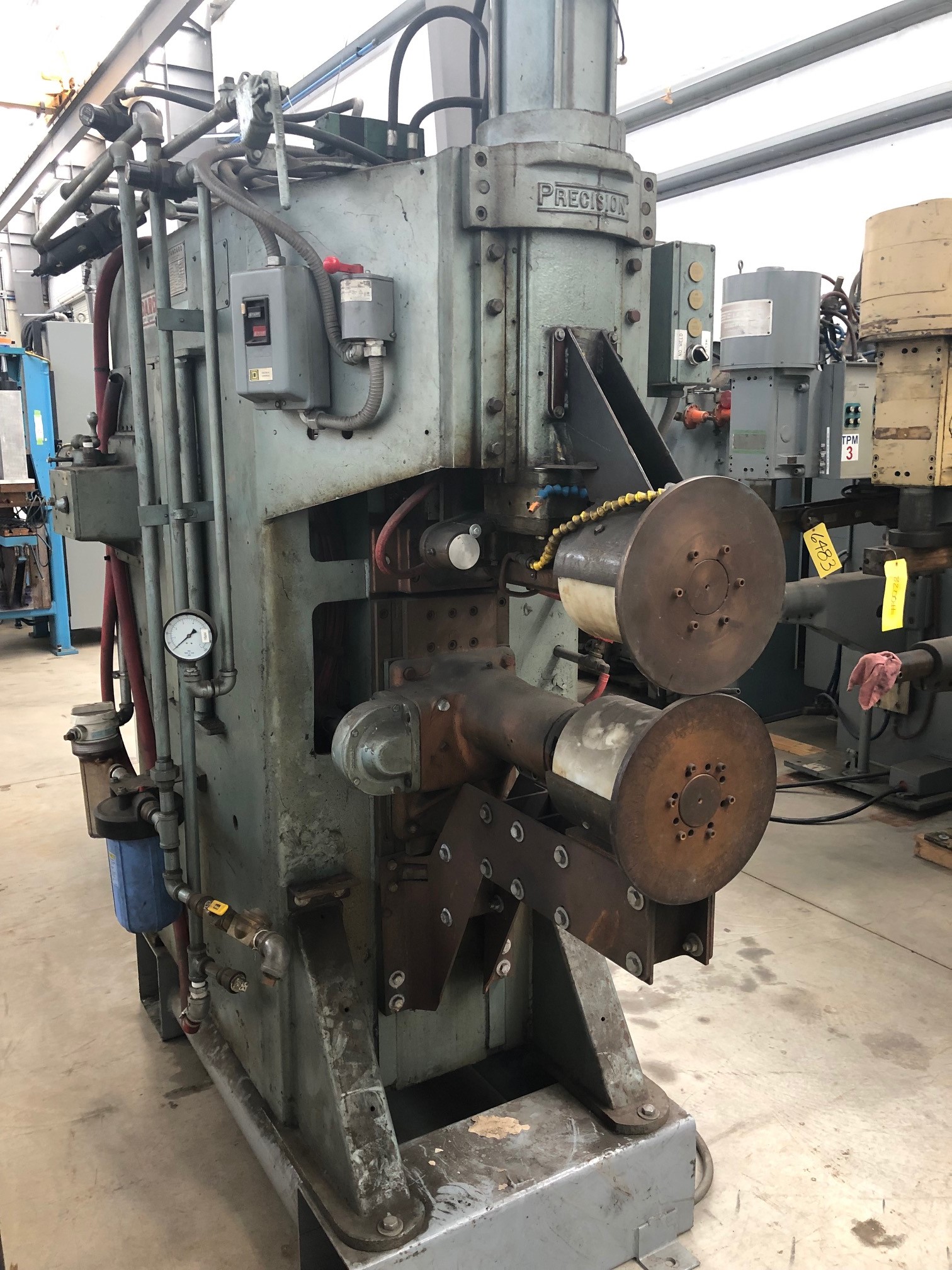

Precision 250 KVA Circumferential Seam Welder

  • Machine Specifications

    Stock Number:

    6745
    Transformer:

    250 KVA
    Manufacturer:

    Precision
    Mfg. Model Number

    RGCD Seam
    Voltage:

    440/460/480 Volts, Single Phase
    Throat Depth:

    27" in
    Secondary Volts:

    3.96 - 16.42
    Secondary Amps:

    60,000
    Serial Number:

    137079
    Air Type:

    Adjustable/Retractable
    Cylinder Diameter:

    8 in
    Max Force:

    4020 lbf
    Upper Drive:

    Idler
    Lower Drive:

    Gear
    Wheel Upper:

    12" dia. in DIA
    Wheel Lower:

    12" dia. in DIA
    Additonal Details:

    PRECISION heavy duty Circumferential Seam Welder 250 KVA, 440V, single phase, AC Lower gear drive 27" throat depth Series/Parallel Tap Switch 6.96 to 16.42 secondary volts, adjustable 11.5" wheel diameter 8" diameter air cylinder, with adjustable stroke Ball Bearing Arm for fast follow-up ENTRON EN1000 control, with programmable functions
